China 50Ω Gold Plated SMP Female to SSMP Female SMP to SSMP Jack to Jack RF Coaxial Adapter up to 40GHz wholesale
  • China 50Ω Gold Plated SMP Female to SSMP Female SMP to SSMP Jack to Jack RF Coaxial Adapter up to 40GHz wholesale

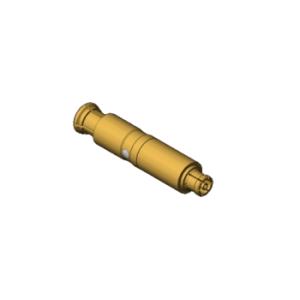

50Ω Gold Plated SMP Female to SSMP Female SMP to SSMP Jack to Jack RF Coaxial Adapter up to 40GHz
Ask Latest Price
Video Channel
Brand Name :ELT
Model Number :SMP/SSMP-KK
Certification :ISO9001, IS014001
Place of Origin :Xi'an, China
MOQ :MOQ 50 pieces
Price :The price depend on the quantity
Payment Terms :T/T,L/C,D/P
Supply Ability :As requirements
Delivery Time :8-12 weeks for new production
Packaging Details :1pcs/plastic bag;100pcs/carton
Product Name :Straight SMP Female to SSMP Female Adapter
Model :SMP/SSMP-KK
Frequency Range :0.3MHz-40GHz
Impedance :50Ω
Rated Voltage :170v
DWV :500V
Insulation Resistance :≥5000MΩ
Center Conductor :Copper Alloy, Gold Plated
Outer Conductor :Copper Alloy, Gold Plated
Samples :Available，In Stock
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
Straight SMP to SMPM (SSMP) Female to Female Jack to Jack RF Coaxial Adapters up to 40GHz
Product Specifications
Items Value
Product Name Straight SMP Jack to SMPM Jack Adapter
Model
SMP/SSMP-KK
Frequency Range 0.3MHz-40GHz
Impedance 50Ω
Rated Voltage 170v
DWV

500V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Insulators PTFE
Product Outline Dimenstion SMP/SSMP-KK (Unit: mm)

50Ω Gold Plated SMP Female to SSMP Female SMP to SSMP Jack to Jack RF Coaxial Adapter up to 40GHz

Note: Please contact us freely through sales3@xa-elite.com.cn for model, more series you need.
Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
50Ω Gold Plated SMP Female to SSMP Female SMP to SSMP Jack to Jack RF Coaxial Adapter up to 40GHz
Packaging & Shipping
Packaging: Each Adapter is carefully packaged in protective cartons to ensure safe transit. 50Ω Gold Plated SMP Female to SSMP Female SMP to SSMP Jack to Jack RF Coaxial Adapter up to 40GHz Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar Adapter models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
