Customized SMP Female Right Angle Connector for CXN3506/MF108A Cable
SMP RF Connector Introduction
SMP connectors are micro-miniature push-on, snap-on connector series with operating frequency up to 40GHz. Their small size makes SMP connectors ideal for high density applications. SMP connectors are quick mate, and exhibit excellent vibration resistance. For signal isolation, the slotted outer body SMP connector design is not as good as threaded connector designs such as 2.92mm connectors.
| General Specification for SMP Connector Adapter | ||||
Impedance | 50Ω | |||
Frequency Range | DC~40GHz | |||
Rated Voltage | 170VRMS(at sea level) | |||
Dielectrics Voltage-resistance | 500VRMS(at sea leavel) | |||
Insulation Resistance | ≥5000MΩ | |||
Outer conductor | normal≤2.5mΩ, hermetically sealed ≤4mΩ | |||
Center conductor | normal≤6mΩ, hermetically sealed ≤26mΩ | |||
| Frequency Range | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| VSWR for straight connector | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR for right angel connector | ≤1.3 | |||
| VSWR for adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| VSWR other | ≤1.3 | |||
| Center Conductor | Male | Tin Phosphor Bronze/Kovar Alloy | gold plated | |
| Female | beryllium bronze | gold plated | ||
Elastic Contact | beryllium bronze | gold plated | ||
Shell and other Metal Parts | brass/beryllium bronze/Kovar Alloy/copper alloy, stainless steel passivated | |||
Insulators | glass sintering/PTFE/PEI | |||
Leakage Rate for hermetically sealed connector | 1.01325×10-3 Pa·cm3 /s | |||
Features:
* Ability to withstand radial/axial misalignment
* Board-mount, field-replaceable, bullets, hermetic and cable connector configurations
* Custom connectors available
Outline Drawing of
SMP Female RF Adapter
| Model No. | L(mm) |
| SMP-J506D | L=7.9, Male, Limited detent, interface deepth 2.79 |
| SMP-J506G-2 | L=13.7, Male, Stainless steel, Limited detent, interface deepth 2.79 |
| SMP-K506-68 | L=13.3, Female, Limited detent |
| SMP-KF506-40 | L=8.7, Female, 2-hole flange, Limited detent |
| SMP-KF506-82 | L=12.8, Female, 2-hole flange, Limited detent |
| SMP-KW506-45 | Right angle, Female, Limited detent |
| SMP-KW506-46 | Right angle, Female, Limited detent |
| SMP-KWF506-161 | Right angle, Female,2-hole flange, Limited detent |
| SMP-KWF506-215 | Right angle, Female,2-hole flange, Limited detent |

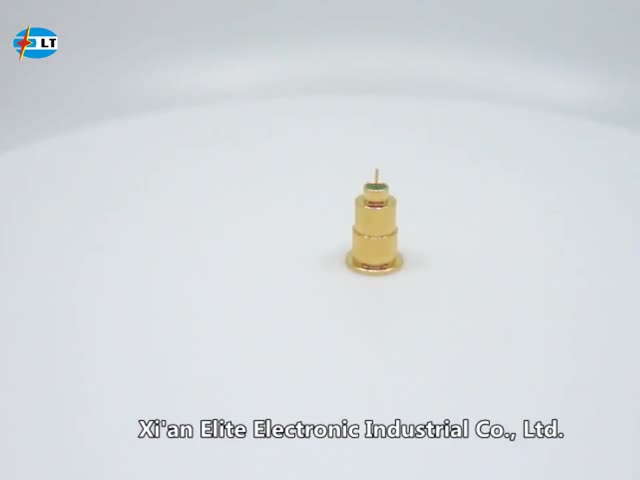

Related SMP female connectors
1.
2.
3.
4.
5.
6.
7.
8.
9.
Install Introduction:
NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
